A 10-minute power outage at a factory can mean thousands of defective products, machines that need to be restarted from scratch, and significant financial losses. In a hospital, a power failure can cost lives. In the modern industrial era, disruptions to power supply are not merely an inconvenience, they are a business risk that must be seriously mitigated.

This is where the AMF Panel (Automatic Main Failure) becomes an indispensable solution for industrial, commercial, and critical infrastructure facilities.

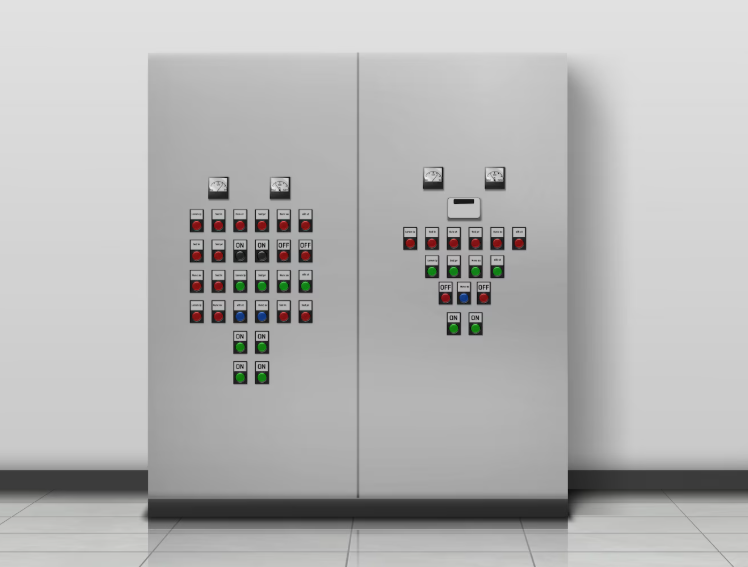

What Is an AMF Panel?

An AMF panel is an electrical control system that automatically detects a failure in the main power supply (from the grid) and immediately activates a generator as a backup power source without any human intervention. Once the main supply is restored, the system automatically transfers the load back to the grid and shuts down the generator.

In simple terms: an AMF panel ensures the power at your facility never truly goes out the switchover happens within seconds, almost imperceptible to running equipment.

How Does an AMF Panel Work?

The AMF panel operates through a fast, structured sequence:

1. Grid Failure Detection — Voltage sensors on the panel continuously monitor the quality and availability of the main power supply. The moment voltage drops below a threshold or supply is cut, the system detects it within milliseconds.
2. Generator Start Command — The AMF panel immediately sends an automatic start signal to the generator. Modern generators typically require 8–15 seconds to reach stable speed and voltage.
3. Load Transfer (ATS) — Once the generator is ready, the integrated ATS (Automatic Transfer Switch) transfers the entire electrical load from the grid to the generator — in a matter of seconds.
4. Monitoring During Operation — The AMF panel continuously monitors generator conditions — voltage, frequency, temperature, and fuel level — while it operates as the primary power source.
5. Transfer Back to Grid — Once the main supply is restored and stable for a set period (typically 1–3 minutes for confirmation), the panel automatically transfers the load back to the grid and shuts down the generator after a cooling-down period.

Key Components of an AMF Panel

• AMF Controller — the brain of the system, processing signals and executing control logic. Popular brands include Deep Sea Electronics (DSE), ComAp, and DEIF.
• ATS (Automatic Transfer Switch) — the component that physically switches the load connection between the grid and generator
• Voltage Monitoring Relay — monitors grid voltage quality in real time
• Circuit Breaker (MCCB/ACB) — protection against overcurrent and short circuits
• Battery Charger — keeps the generator battery always ready to start
• HMI / Display Panel — interface for system monitoring and configuration

Who Needs an AMF Panel?

• Factories and manufacturing facilities — where production downtime directly translates to financial loss
• Hospitals and clinics — where power availability is a matter of life and safety
• Data centers and server rooms — where even brief outages can cause permanent data loss
• Office buildings and shopping centers — for occupant comfort and security
• Oil & gas processing facilities — for continuity of critical production processes
• Shipyards and heavy industry — especially relevant in Batam with its many such facilities

AMF vs. Manual Transfer: What's the Difference?

Without an AMF panel, switching to a generator requires manual intervention, an operator must notice the outage, go to the generator location, start it manually, and flip the transfer switch. This process can take 5–15 minutes or longer, especially at night or when no operator is on standby.

With an AMF panel, the entire process happens automatically within 8–20 seconds, 24 hours a day, 7 days a week, with no dependence on operator presence.

Why Choose Wahari Nawa Manunggal for Your AMF Panel?

As an experienced Electrical & Industrial Automation company in Batam, Wahari Nawa Manunggal provides comprehensive AMF panel services, from power requirement consultation, panel design, fabrication, installation, commissioning, to ongoing maintenance.

Every panel we build is designed to national (PUIL) and international electrical standards, uses components from trusted brands, and is rigorously tested before handover. With 24/7 technical support, we ensure your backup electrical system is always ready to operate whenever it's needed.

One Investment, a Lifetime of Protection

A properly designed and installed AMF panel has an operational lifespan of 15–25 years. Compared to the potential losses from a single unhandled power outage damaged products, production downtime, equipment failure investing in an AMF panel is one of the wisest decisions you can make to protect your business.

Contact the Wahari Nawa Manunggal team now for a free survey and consultation. We are ready to design the AMF panel solution best suited to your facility's needs and capacity.
